The preview enables you to see an insight of your document.
Several means to preview documents are available.

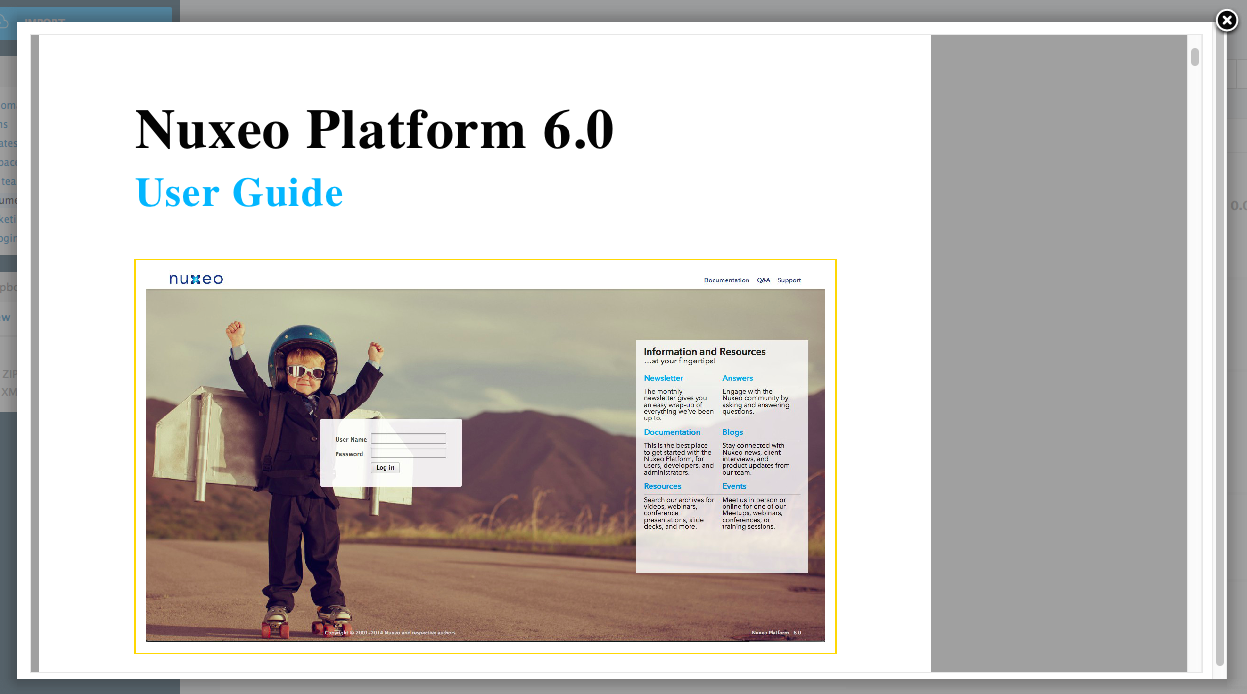

- For office and PDF documents: Click on the icon
next to the attachment name on the Summary tab.
The preview opens in a new browser tab.

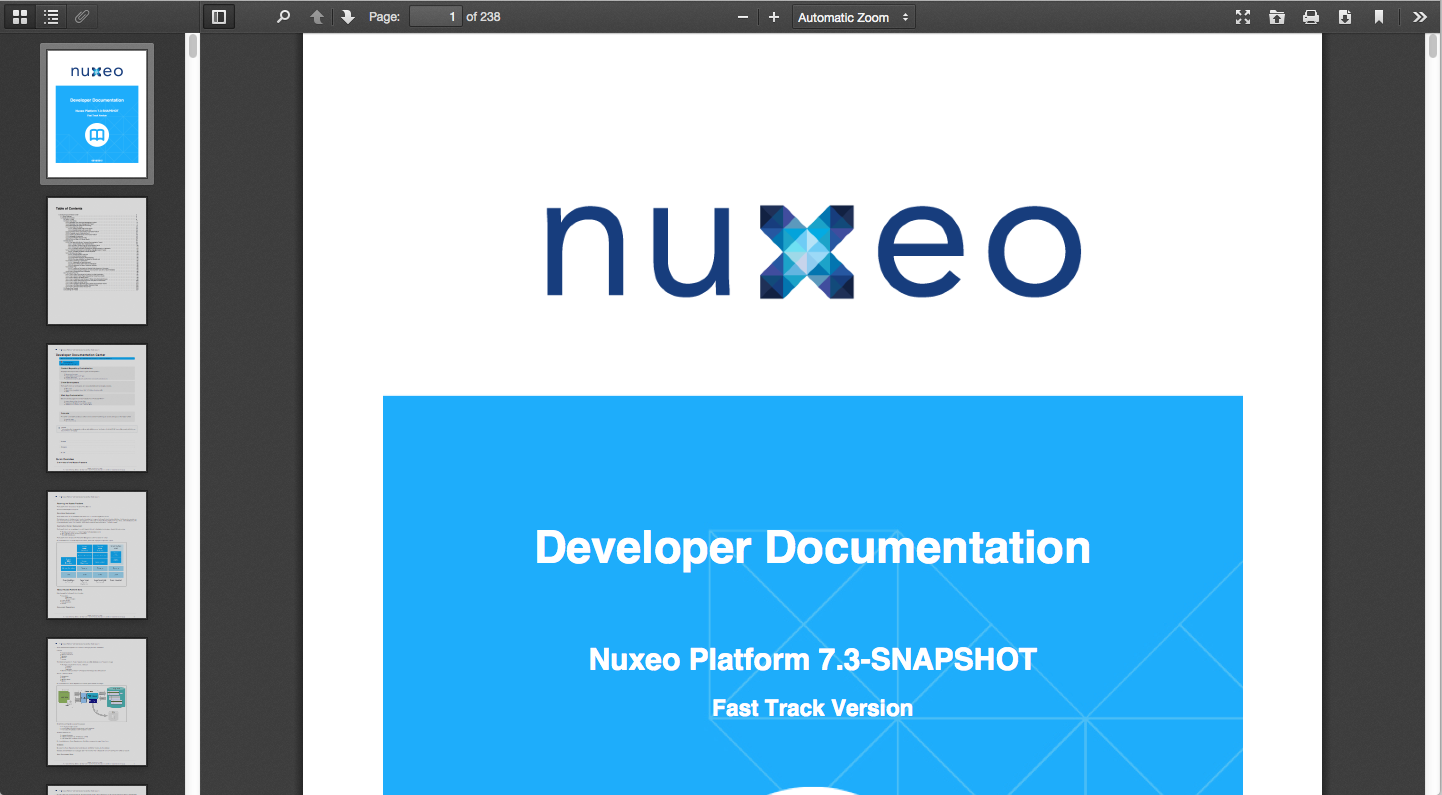

This preview leverages pdf.js by Mozilla.
- For all documents on the Summary tab of a document, click on More > Preview.
The document preview is displayed in a popup window.
This preview leverages the Nuxeo Platform preview module.

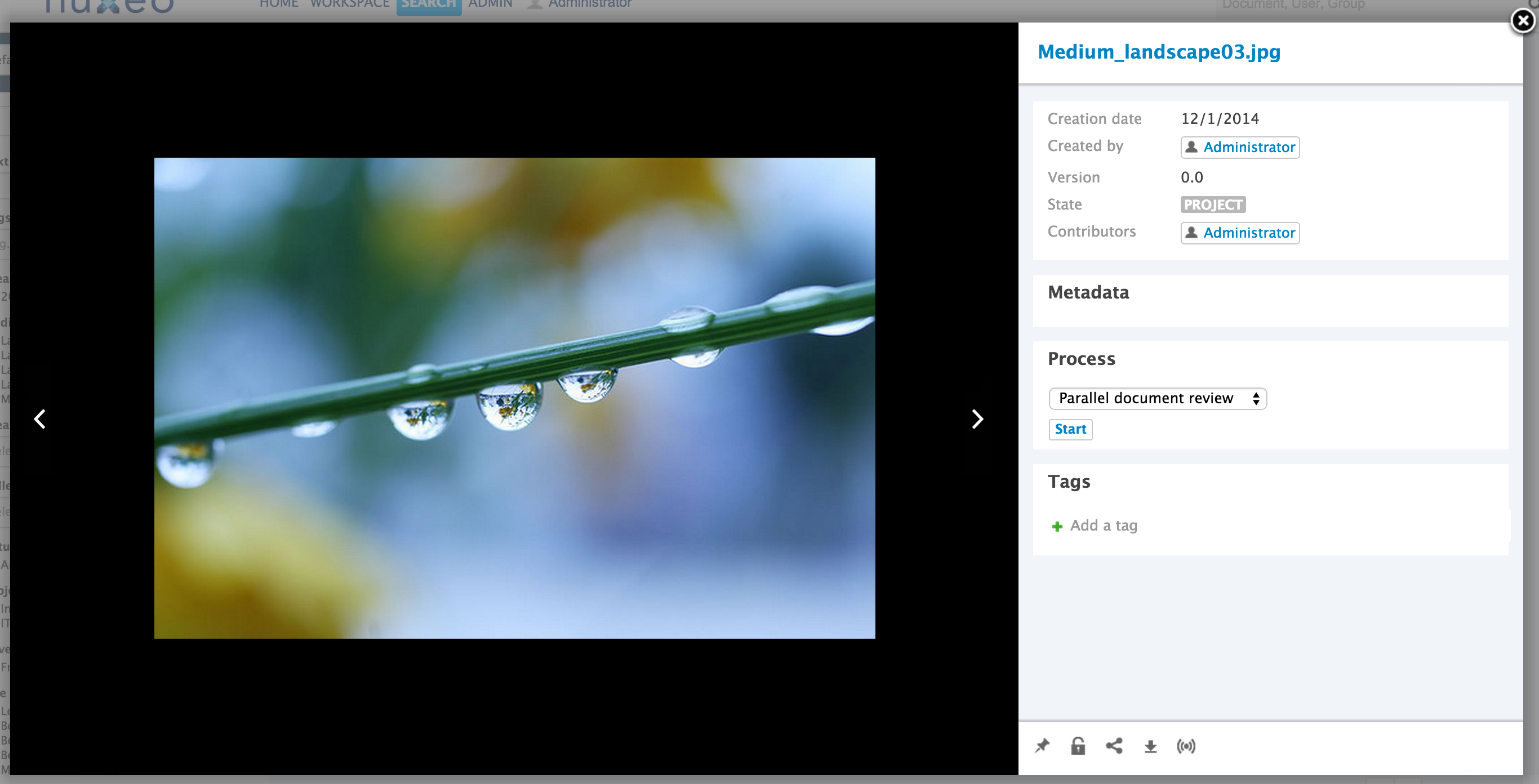

- You can also preview a document along with its main metadata on the Info-View pop-up, accessible from any thumbnail listing.
Supported Formats and Requirements
The table below shows for which file formats the preview is available. The installation of third-party software is required for some formats of the list below.
Reminder
To preview files in the formats AI, EPS, PSD and TIFF, the created document must be a 'Picture' and not 'File' type.
| File format | Preview supported |
|---|---|
| .ai | Yes |
| .doc | Yes |
| .docx | Yes |
| .eps | Yes |
| .html | Yes |
| .jpg | Yes |
| .odp | Yes |
| .ods | Yes |
| .odt | Yes |
| Yes | |
| .png | Yes |
| .ppt | Yes |
| .pptx | Yes |
| .psd | Yes |
| .tiff | Yes |
| .xls | Yes |
| .xlsx | Yes |
| .xml | Yes |
